Energy T & D

From Poletop to 600 KVDC

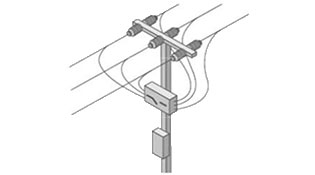

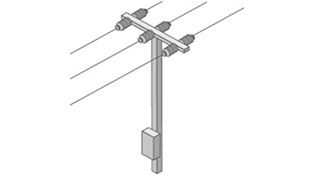

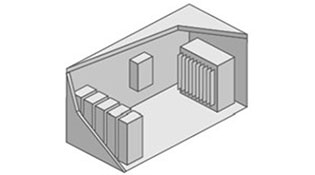

Substation automation is from the smallest poletop that require a few I/O to the large installations that has PRP & HSR with redundant controllers on a fiber optic network. Brodersen has the complete solution.
brodersen-logo
PRP/HSR
brodersen-logo
All Drivers
brodersen-logo
GPS time sync
brodersen-logo
Fiber optic modules
brodersen-logo
Redundancy
brodersen-logo
SOE
brodersen-logo
Debounce in ms
brodersen-logo
KEMA certified Drivers
brodersen-logo
SIL 2
brodersen-logo
61850
brodersen-logo

DNP3

brodersen-logo
60870
brodersen-logo
Certificates

Lorem Ipsum

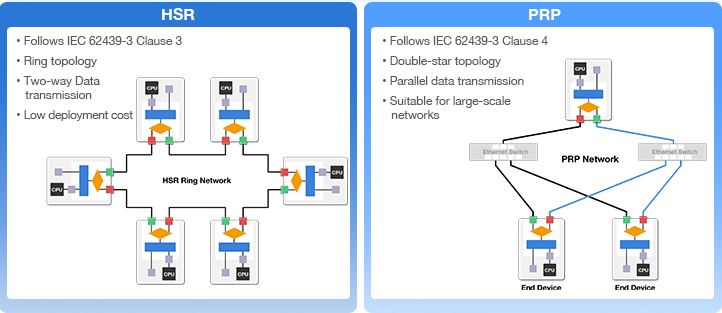

  • brodersen-logo Parallel Redundancy Protocol, PRP
  • brodersen-logo High-availability Seamless Redundancy, HSR
  • brodersen-logo Both are standardized redundancy protocols for industrial automation networks that require zero recovery time.
  • brodersen-logo PRP/HSR products are suitable for electrical substation automation and mission-critical applications that cannot tolerate any system downtime.
  • brodersen-logo IEC 62439-3 Clause 4 = PRP
  • brodersen-logo IEC 62439-3 Clause 5 = HSR
Lorem Ipsum

Lorem Ipsum

GE - General Electric

Project

: Power Substation Automation

End user

: N/A

Consultant

: GE

Contractor

: GE

Description

: Substation Automation using the RTU32M with 61850 Client and standard I/O modules

N-Ergie

Project

: Electricity Network Monitoring and Metering

End user

: N-ergie Germany

Client

: ABB

Description

: Monitoring and metering in more than 1700 outstations using IEC60870-5-101, IEC1107, and 102

Powell Industries

Project

: Power Substation Automation

End user

: BP

Consultant

: Powell Industries

Description

: Redundant setup of RTU32 with IEC61850 Client&Server + Modbus Client & Server and Brodersen Native Binding Protocol
544027794fd1e678872c42e8dec4d631-svg (1)-svg

Statkraft - Norway

Project

: Hydro Power Plant Management

End user

: Statkraft Norway

Consultant

: Alstom

Description

: Complete plant control and regulation. Project met highest level IEC60870-5-104 Statkraft requirements for redundancy, etc. Obtained KEMA certification

BOTAS - Turkey

Project

: Power Substation Automation

End user

: BOTAS Turkey

Consultant

: SPP Engineering

Description

: Implemented +100 RTU32S for substation control and monitoring using DNP3 and Modbus
Botas Logo Vector

Tedas - Turkey

Project

: Power Substation Automation

End user

: Tedas, Turkey

Contractor

: SPP Engineering Ltd.

Consultant

: SPP Engineering Ltd.

Description

: Power Substation Automation using +100 Brodersen RTU32 for control and monitoring. Protocols are DNP3 and Modbus with implementation of IEC-61850 for future use

Electricity Supply Board - Ireland

Project

: Energy Management

End user

: Electricity Supply Board (ESB) Ireland

Consultant

: EFT Ireland

Description

: rgy Management software to identify and monitor ESB customer energy usage by sub-metering of appliances, etc.

Sanofi - Aventis

Project

: Power Substation Automation

End user

: Sanofi-Aventis

Description

: 34 power stations controlled and monitored by the Brodersen RTU32. This includes high uptime requirements for critical operations and supporting redundancy

Start configure your solution, and we will be happy to assist you. We do it every day

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Vestibulum malesuada libero sed ligula faucibus porttitor. Suspendisse sodales lacinia elit, vel viverra enim facilisis at.
Start Build
Lorem Ipsum

Lorem ipsum dolor sit amet

GE Energy – uk

Project

: Power Substation Automation

End user

: N/A

Consultant

: GE

Contractor

: GE

Period

: 2020

Description

: Substation Automation. The project is based on RTU32M with 61850 Client and standard I/O modules

GE ENERGY – SPAIN

Project

: Power Substation Automation

End user

: N/A

Consultant

: GE

Contractor

: GE

Period

: 2015

Description

: Substation Automation. The project is based on RTU32 with 61850 Client and standard I/O modules

BOTAS – TURKEY

Project

: Power Substation Automation

End user

: BOTAS

Consultant

: SPP ENGINEERING LTD.

Contractor

: SPP ENGINEERING LTD.

Period

: 2013-2014

Description

: Power substation Automation. +100 RTU’s where used for control and monitoring the substations. The RTU32S was used with mains protocol DNP3 & Modbus.

POWELL Industries – UK

Project

: Power Substation Automation

End user

: BP

Consultant

: Powell Industries

Contractor

: Powel Industries

Period

: 2014-2015

Description

: Power substation Automation. The project is based on redundant RTU32 with 61850 Client & Server + modbus client & Server + Brodersen native Binding protocol.

SANOFI-AVENTIS – FRANCE

Projec

: Power Substation Automation

End user

: Sanofi-Aventis

Consultant

: N/A

Contractor

: N/A

Period

:

Description

: Plant Power Automation. 34 power stations controlled and monitored by Brodersen RTU32. Task includes uptime critical requirements and sites with redundant setup.

AREVA – GERMANY

Project

: 10kV Switch

End user

:

Consultant

: N/A

Contractor

: N/A

Period

: 2003

Description

: Monitoring and control of medium high voltage switches 10KV. Special RTU and extension modules for operation in high magnetic field environment. IEC60870-5-101 protocol via GSM.

ABB – GERMANY

Project

: Various Power Distribution Applications

End user

:

Consultant

:

Contractor

:

Period

:

Description

:

CEGELEC – PHILIPPINES

Project

: Monitoring Power Stations

End user

: N/A

Consultant

: N/A

Contractor

: Cegelec

Period

: 2003

Description

: Monitoring transformer stations. IEC60870-5-101 communication using leased lines.

ALSTOM – NORWAY

Project

: Hydro Power Plant Management

End user

: Statkraft, Norway

Consultant

: N/A

Contractor

: Alstom

Period

: 2008

Description

: Monitoring and control of Hydro Power plant distributed in Norway. Complete plant control and regulation. Meets the high level IEC60870-5-104 Statkraft requirements with Redundancy Groups etc. RTU32 obtained KEMA approval for this application.

STADTWERKE HAGEN – GERMANY

Project

: Metering, GSM

End user

: Stadtwerke Hagen

Consultant

: N/A

Contractor

: N/A

Period

: 2001 to 2002

Description

: Electricity consumption metering for high volume customers. Transparent meter interface for uploading load-profile transmission and remote meter setup. More than 400 intelligent GSM modems installed.

RWE – GERMANY/AUSTRIA

Project

: Remote Metering, Transformer Metering & Control

End user

: RWE

Consultant

: N/A

Contractor

: N/A

Period

: 2002

Description

: Monitoring and metering of small and medium hydro-power stations in Austria via RWE-European Backbone from central host in Germany.

NPOWER – UK

Project

: Precipitator Monitoring

End user

: NPower

Consultant

: PIACS

Contractor

: N/A

Period

: 2000 to date

Description

: Supply of several Bitbus gateway and optical repeater modules to monitor a number of precipitators made by PIACS in a power station situated in South East of England.

EFT – IRELAND

Project

: Energy Management

End user

: Electricity Supply Board customers

Consultant

: EFT – Ireland

Contractor

: N/A

Period

: 2002 to date

Description

: EFT uses Brodersen’s RTUs in conjunction with their Energy Management software to monitor energy usage. EFT jointly markets their solution with the Electricity Supply Board (ESB) of Ireland. The aim is to identify where and how electricity is being used by ESB’s customers by sub-metering of appliances etc.

N-ERGIE – GERMANY

Project

: Remote Metering, Transformer Monitoring & Control

End user

: N-ergie

Consultant

: N/A

Contractor

: ABB

Period

: 2001 to 2003

Description

: Monitoring and metering in an electricity network with more than 1,700 outstations. IEC60870-5-101 communication via leased lines. The RTUs feature a built-in interface for IEC 1107 and IEC 102 meter interface.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

EFT – IRELAND

Project

: Energy Management

End user

: Electricity Supply Board customers

Consultant

: EFT – Ireland

Contractor

: N/A

Period

: 2002 to date

Description

: EFT uses Brodersen’s RTUs in conjunction with their Energy Management software to monitor energy usage. EFT jointly markets their solution with the Electricity Supply Board (ESB) of Ireland. The aim is to identify where and how electricity is being used by ESB’s customers by sub-metering of appliances etc.

YEDAS – TURKEY

Project

: Power Substation Automation

End user

: Yedas

Consultant

: GE (General Electric)

Contractor

: GE (General Electric)

Period

: 2013-2014

Description

: Power substation Automation. +100 RTU’s where used for control and monitoring the substations. Up to 26 IED were connected to each Brodersen RTU32. The IED’s use 61850 and were converted to 60870-5-104 by the RTU’s before sent to YEDAS SCADA. Larger sites were above 35K variables. SNMP was used for synchronizing the substations to central SCADA.

TEDAS – TURKEY

Project

: Power Substation Automation

End user

: TEDAS

Consultant

: SPP ENGINEERING LTD.

Contractor

: SPP ENGINEERING LTD.

Period

: 2012-2013

Description

: Power substation Automation. +100 RTU’s where used for control and monitoring the substations. Main protocol was DNP3 & Modbus. 61850 was not used in the project, but was implemented as for future use.
